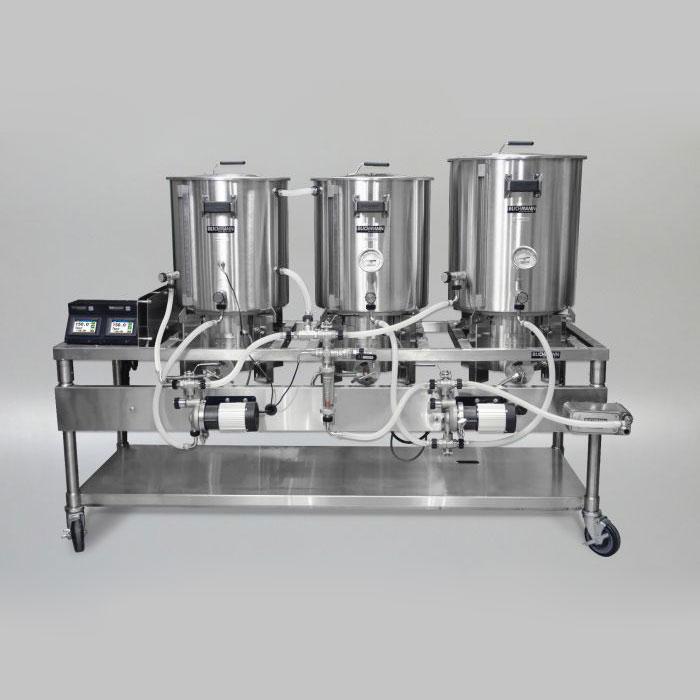

Blichmann Complete Gas HERMS Horizontal Systems (5 Gal- 1Bbl)
Product details
The Blichmann Pro Pilot System is a true turnkey brewhouse including virtually everything you need to get up and running fast! Perfect for taprooms, pilot systems and neighborhood breweries. No fuss, no hassle, just pure pro brewing power!
Due to Extended Supplier delays on certain products. Please allow 2-6 weeks for delivery, as this product ships directly from the manufacturer. BLICHMANN ENGINEERING & ANVIL BREWING ARE EXPERIENCING EXTENDED SUPPLIER DELAYS ON CERTAIN PRODUCTS. Express shipping options not available.
TECHNICAL SPECIFICATIONS
Horizontal brew station engineered for seamless system flow and maximum brew day efficiency.
Kettles
- Made in America.
- Single piece construction from US made stainless steel.
- Heavy gauge 304 stainless steel.
- Linear Flow Valve disassembles in seconds for cleaning, allows precise control of flow, and orients in any direction.
- Rivet free handles, rugged cool touch grips, oriented for easy carrying.
- Borosilicate glass level gauge.
- Diptube with rotating racking arm.
- Lifetime limited warranty on kettles.
Accessories
- Patented button louver false bottom.
- AutoSparge™ automatically sets the hot liquor flow rate and liquid level in your mash tun.
- Adjustable viewing angle thermometer.
- Whirlpool fitting in boil kettle.
HellFire™
- 140,000 BTU/hr at full power, 80,000 BTU/hr in efficiency mode (50% power setting).
- Patent pending clip-on heat shield.
- Infinitely adjustable kettle retaining bars accommodated kettles up to 19.75" in diameter.
- Non-rusting, fume free heavy gauge stainless frame.
RipTide™ Brewing Pump
- Ultra quiet motor.
- Tri-Clamp disassembly for easy cleaning.
- Integral linear flow control valve.
Additional information
| SKU | 43025, 43026, 43027, 43028, 43029 |
BrewCommander™ Controller
- Intuitive Touchscreen Interface.
- Keypad Data Entry.
- Advanced Temperature Control Algorithm.
- Automated Step Mashing (up to 5 steps and 9 profiles).
- Boil Addition Timers (up to 7 additions and 9 profiles).
- Integral Pump Switch.
- Lab Grade Precision Thermometer - Superior to RTD's.
- Customizable Settings - Basic and Advanced.
- Mash Step Ramp Rate Delay.
- HERMS / RIMS Offsets.
- Audible Alarms.
- Upgradable Firmware.
- Switchable Between Table and Wall Mounting.
- Modular - Connect Multiple Units!
- Optional Relay Modules allow control of a single kettle with multiple heating elements (up to 5) with one controller.
- Optional SparkBox™ Remote Ignition Module.
Heavy Duty Custom Table
- 14 ga 304 stainless steel.
- Apron to mount accessories.
- Legs and lower shelf are stainless.
- Built-in receptacle boxes.
- Heavy duty casters for mobility.
- Adjustable height lower storage shelf.
- Made in USA.
