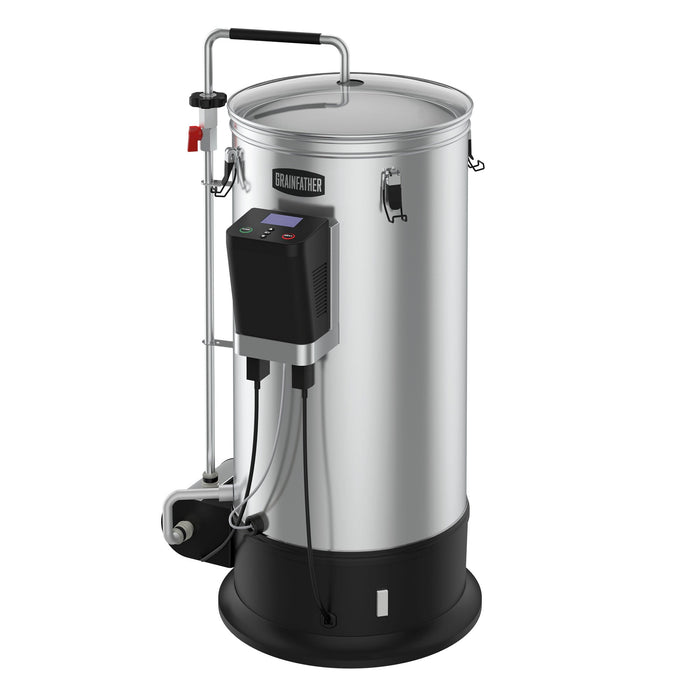

Grainfather G30 220v Version 3 All-in-One All-Grain Brewing System

New & Improved Grainfather G30³ 220V

The new and improved Grainfather G30 version 3 220v allows you to mash, sparge, boil, and cool, all in one fully electric, self-contained system. Now includes the Connect Controller. You can take direct control of the Grainfather with your iPhone or Android using Bluetooth. Use the Connect Control Box in conjunction with the Connect App for the ultimate brewing experience.

The Grainfather is an all-in-one All-Grain brewing system designed to declutter your brew cave and put everything you need in one compact package. No need to take your craft outside, with this fully electric system you are safe to brew indoors!

The Grainfather system is the perfect brewing companion for both new and experienced All-Grain brewers looking to streamline the brewday experience.

Manufacturer Instructional Booklet

What's new on the G30 Version 3:

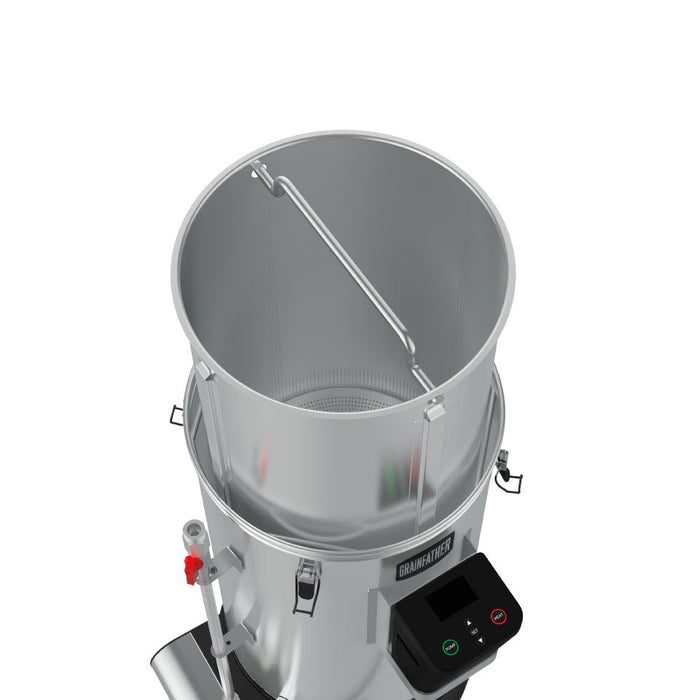

• Grain Basket Assembly:

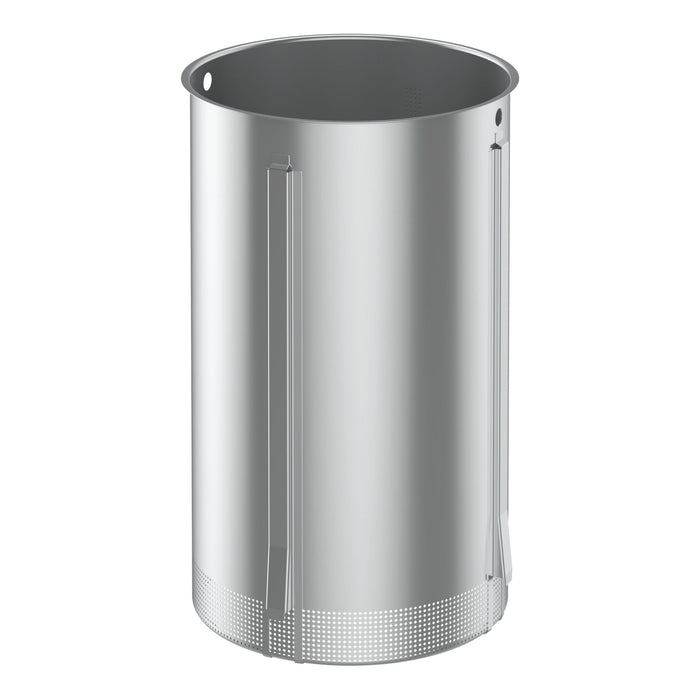

  The newly redesigned Perforated Edge Grain Basket on the G30³ features side wall perforations to improve wort flow and to prevent a stuck mash.

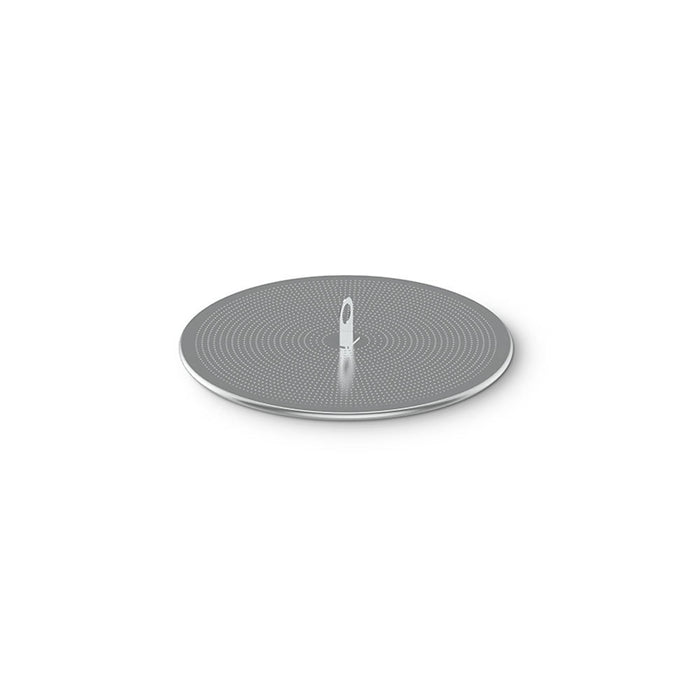

  In addition to the redesigned grain basket, the new Rolled Edge Mash Plate filters the wort efficiently without warping. The new rolled edges mean that there is no need for silicone seals, making the plates much easier to install, remove, and clean.
  The new grain basket and mash plate design means that there is no need for overflow pipework or a top plate, allowing for a hassle-free brew day.
• Auto Reset Switch:
  Lifting and reaching underneath the boiler to reset your electric homebrewing system is now a thing of the past! The new auto reset switch avoids needing a physical, manual switch to reset the system; ensuring homebrewers can quickly and easily resume their brew day if an unexpected reset is required.

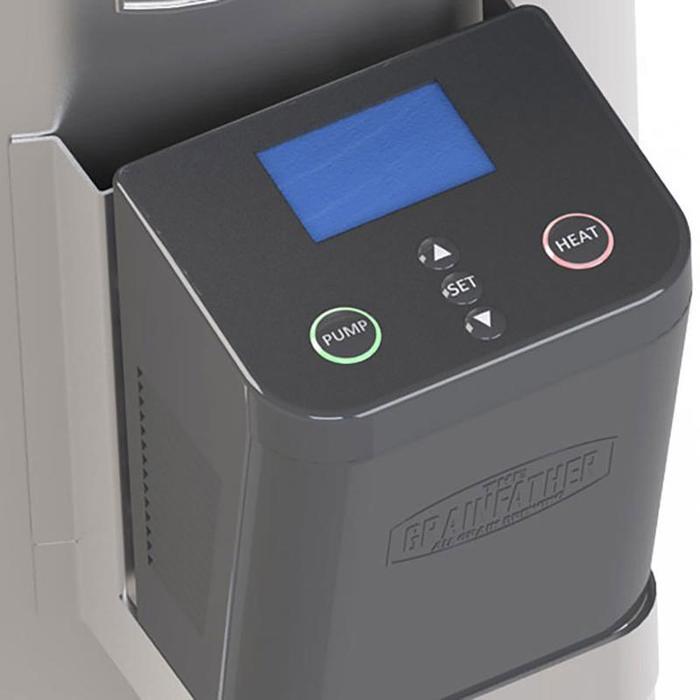

Control box for heat and power control features:

Use the Connect Control Box in conjunction with the Connect App and Grainfather Brewing Community for the ultimate experience. Create recipes on the Grainfather Brewing Community, then sync them with the Connect App. The control box connects to your mobile device via Bluetooth for remote control. This allows you to multitask or simply relax while brewing and receive an alert for your next step.

• PID algorithm works in conjunction with a TRIAC for more stable heating and power output control
• Programmable step mashing
• Delayed heating - fill your Grainfather with water the night before and wake up to strike water at temp & ready to brew
• Change between Celsius and Fahrenheit
• Waterproof display
• Use in manual mode or with app

Grainfather Connect App & Automation Features:

• Grainfather Grain Kit recipes provided in app
• Import recipes (Beer XML files) - NOTE: iOS9 and higher
• Set your own boil temperature (for different altitudes)
• Change between Celsius and Fahrenheit
• In-app Grainfather calculators
• Create recipes on the Grainfather Brewing Community, then sync with the Connect App

Note: Required Specifications for the App are:

• iPhone/iPad
• iPhone 4S or higher
• iOS8 or higher. Must have Bluetooth 4.0 or higher
• Android
• Android 4.3 (API Level 18) or higher
• Must have Bluetooth Low Energy (LE)/Bluetooth Smart

PLEASE NOTE: All Grainfathers contain a yellow packaging strip in the boiler. Discard before brewing.

Don't have 220v? Looking for the Grainfather Connect G30 110v?

Additional information

Support Documents - Instructions	Click here for instructions
SKU	43376

NOTE: The Grainfather G30 220v requires 220-240v service with at least a NEMA6-15R or NEMA 6-20R outlet.

Electrical Requirement:

• Power: 220-240 V
• Power Supply Outlet: NEMA 6-15R or NEMA6-20R compatible

Specifications:

• 304 Grade stainless steel body
• Power Req: 220-240 V
• Power Supply Outlet Req: NEMA 6-15R or NEMA6-20R compatible
• Heating Element: 2000 W
• 8 US Gal
• Expandable grain basket accommodates up to 20lb
• A robust magnetic drive pump (6 watt, 1800 RPM)
• Counter flow wort chiller can cool wort to less than 68°F in approx 20-30 min
• Tempered glass lid for maximum durability, heating efficiencies, and visibility
• Clips to convert your Grainfather to a home distillery with the Pot Still Attachments

Pump Features:

A 6 Watt, 1,800 RPM magnetic powered pump recirculates the wort through the grain bed for maximum efficiencies. The pump is also used during cooling to pump hot wort through the wort chiller. The pump also makes cleaning quick and easy by pumping the cleaner through the pipework. The magnetic drive pump was rigorously tested to ensure it meets the tough demands required of continuous brewing. The pump is concealed by a stainless pump cover, which is easy to open for direct access. A pump filter is fitted inside the Grainfather to prevent hops and grain from entering the pump or pipework, keeping the wort clear & preventing blockages.

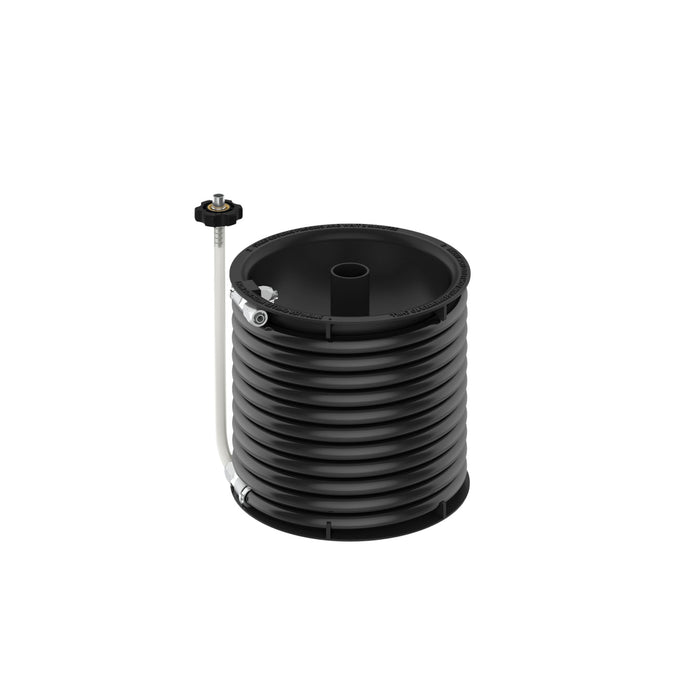

Counter Flow Wort Chiller Features:

The counter flow wort chiller has two connection points. One is connected to the Grainfather, the other is connected to cold tap water. Hot wort is pumped through the copper inner coil, while cold water is pumped through the outer coil in the opposite direction, providing instant cooling. The cooled wort can be pumped directly into your clean, sterile fermenter reducing the risk of contamination. 6 US Gal of wort can be cooled in as little as 20 min. Wort will be cooled to approximately 41°F above your tap water temperature.
